X2305 2350 1450KV 1620KV 1850KV Brushless Motor 2~3S Lipo 15-20A ESC for SUNNYSKY for GWS9050/GWS8043 Prop RC F3P 3D Fixed-Wing Aircraft (1PC X2305 1450KV)
Product details
| Management number | 218142162 | Release Date | 2026/05/03 | List Price | US$8.80 | Model Number | 218142162 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

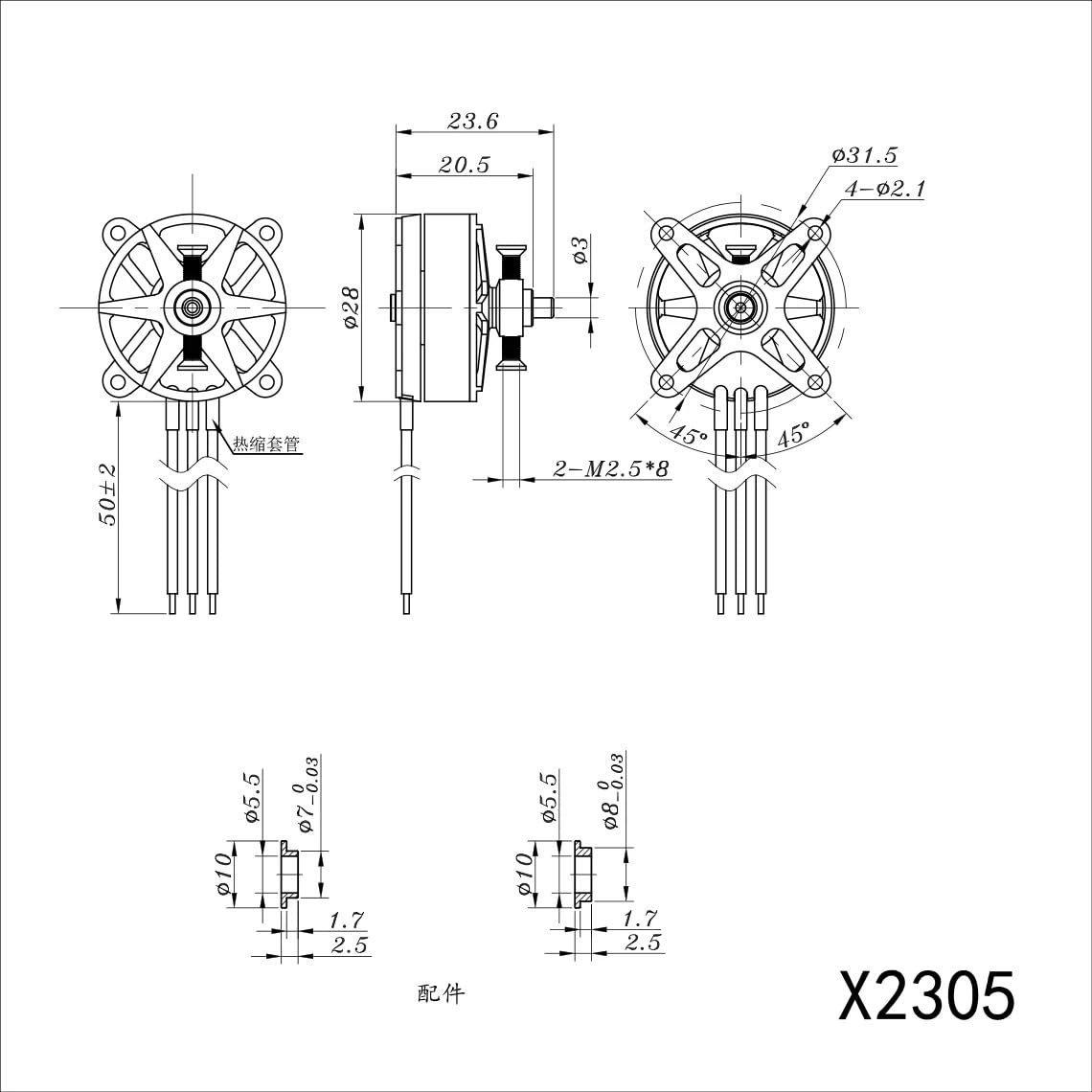

Item: SUNNYSKY X2305 1450KV 1620KV 1850KV Brushless Motor Parameters: Motor Model:X2305-V3 1450KV Body Length(Without Shaft):20.5mm Stator/Rotor Poles:12N14P Internal resistance:120mΩ Motor size:φ28.0*23.6mm Shaft Diameter:3.0mm AWG:20AWG # 50mm Motor weight(wire included):25g Rated operational voltage:2-3S Lipo No-load current:0.5A/10V Maximum continuous power:168W Maximum continuous current:20A/30s ESC recommended use:10-20A Propeller size recommended:GWS8043/GWS9047/GWS9050/GWS1047 Motor Model:X2305-V3 1620KV Body Length(Without Shaft):20.5mm Stator/Rotor Poles:12N14P Internal resistance:85mΩ Motor size:φ28.0*23.6mm Shaft Diameter:3.0mm AWG:20AWG # 50mm Motor weight(wire included):25g Rated operational voltage:2-3S Lipo No-load current:0.6A/10V Maximum continuous power:235W Maximum continuous current:23A/30s ESC recommended use:15-20A Propeller size recommended:GWS9050/GWS8043/GWS9047/GWS8060 Motor Model:X2305-V3 1850KV Stator/Rotor Poles:12N14P Internal resistance:64.5mΩ Shaft Diameter:3.0mm AWG:20AWG # 50mm Motor weight(wire included):25g Rated operational voltage:2-3S Lipo No-load current:0.8A/10V Maximum continuous power:210W Maximum continuous current:25A/30s ESC recommended use:20-25A Propeller size recommended:GWS8043/GWS9047/GWS9050 Package Included: X2305 Brushless Motor x 1 or x 4 Bag of Accessories x1 or x4
- Long life NMB ball bearings, high-efficiency stator steel
- Newly optimized magnetic circuit, rare earth magnets can stabilize up to 180 degrees Celsius, oxygen free pure copper wire
- Patent balancing technology, strict dynamic balancing, fine workmanship, and meticulous design
| Brand Name | SPARKHOBBY |
|---|---|
| Manufacturer | SUNNYSKY |
