WOYO PL006 Automobile Ignition Coil Test, Injector Solenoid Valve Idling Stepper Motor Instrument Diagnosis, PWM Signal Simulator, Adjust Duty Cycle/Rheostat/Coil Driving Current/Signal Volt, etc

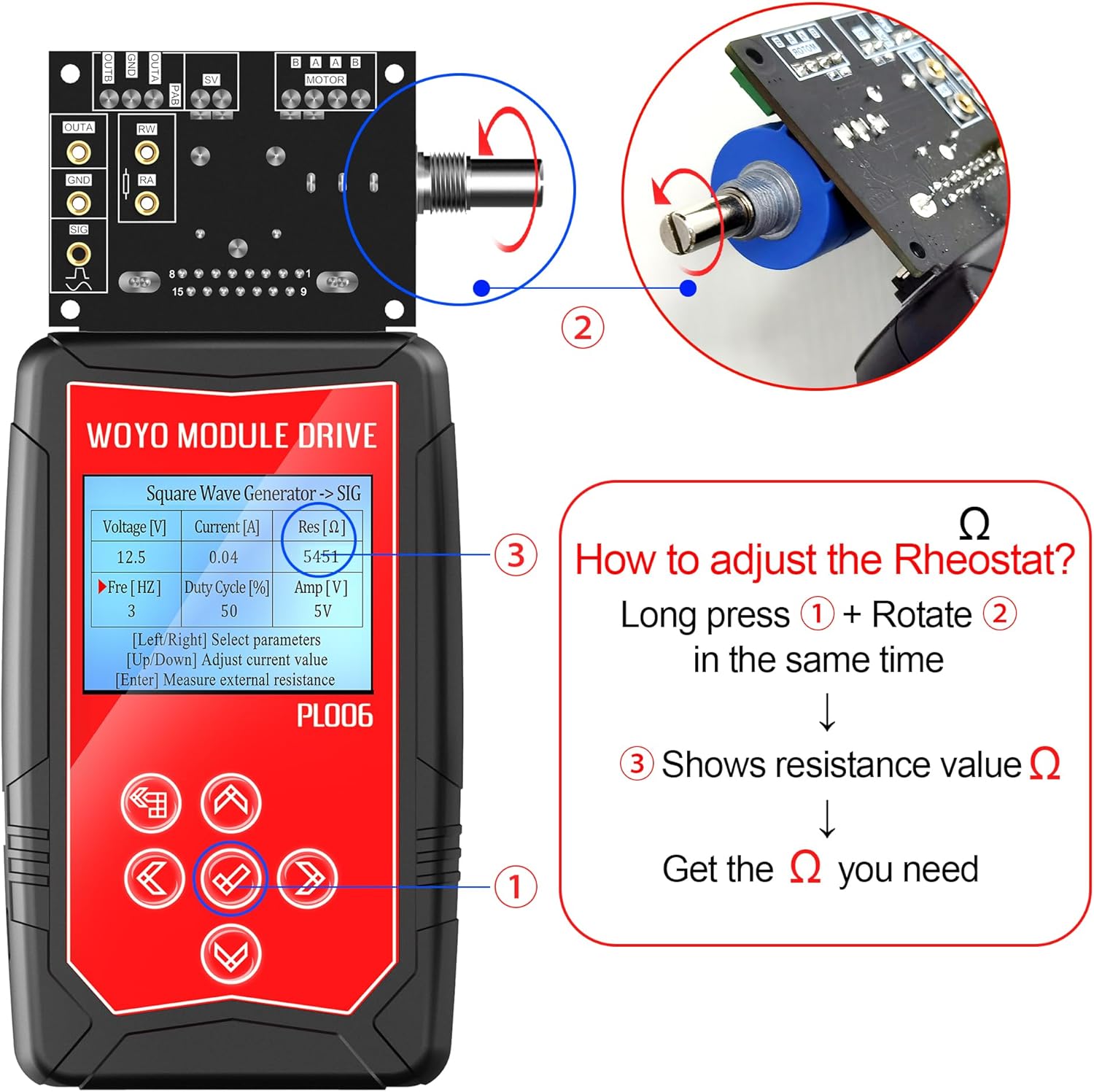

PL006 simulate 12V automotive PWM signal to drive 3P/4P ignition coil, solenoid valve, Instruent stepper motor, Headlight steering tepper motor, Air conditioner pressure sensor (duty cycle type), Idle speed stepper motor, etc. PL006 module drive also can adjust Rheostat about 0-10kΩ.

• PL006 simulate Automotive PWM signal to test ignition coil, solenoid valve, stepper motor, oxygen sensor, accelerator, common rail signal, throttle, etc.
• Input Battery Supply: 12V 2A, Adjust frequency range: 1HZ-100KHZ, Adjust Coil Driving Current range: 0-10A, Adjust Duty cycle range: 0-100%, Adjust Signal Volt Amplitude: Depend on different type(0.1-12V), Rheostat range: 0-10kΩ
• Stepper motor: 4-wire 12V stepping motor drive, maximum power 6W (500mA);
• Square wave: 1-100Khz ,amplitude 5/10V, can automatically read the resistance value of rheostat, and display the output analog resistance of rheostat during regulation;
• Sine wave: 1-100Khz, amplitude 5/10V, can automatically read the resistance value of Rheostat, and display the output analog resistance of Rheostat during regulation;
• Solenoid valve: 0-10A control relay open/close (driven part voltage can be customized by user);
• Accelerator: A/B=1:2 , A-channel voltage up to 2.5V, B-channel voltage up to 5V, for dual synchronization coefficients output analog signals (can also be used separately);
• Oxygen sensor: 1V or 5V analog signal output; Throttle: A+B=5V, used to output analog signal with dual synchronization coefficients (can also be used separately).
• Common rail signal: analog rail pressure output, interface with rail pressure corresponding pressure and analog signal voltage parameters;
