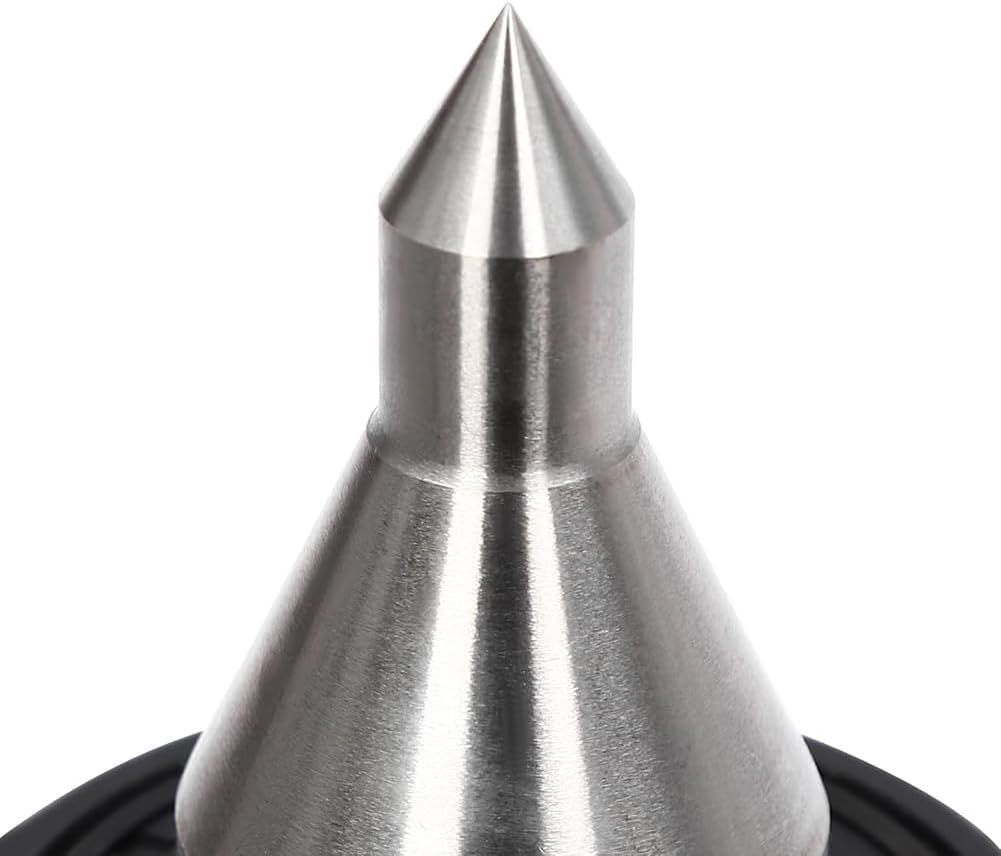

MT5 Live Center, Morse Taper Tool Rotary Medium Duty Live Center Heavy Duty High Speed Live Tailstock Center for Wood & Metal Lathe CNC Work

Our MT5 live center has the characteristics of high precision, large bearing capacity, and high rigidity, which is very beneficial for precision machining and strong cutting. With the help of the positioning of the tip, the processed parts can achieve high dimensional accuracy. It is an indispensable accessory in today's mechanical processing.DetailsSmooth Edges: They can effectively care for your skin when using or cleaning this product.Long Spindle Point: It extends into needle bearing supported shank to effectively improve rotating performance and reduce vibration.Alternate Color: The alternating distribution of black and silver enhances the aesthetic appeal of the product.SpecificationsModel: MT5Material: 40CR SteelProcess: Quenching, Precision MachiningColor: Black, SilverMaximum Rotational Speed: About 1000rpmMax Weight of Work Piece: About 250kg/551.1lbsConcentricity: ＜0.002mm/0.00008inAngle: 60°Total Tip Length: 55mm/2.16inHandle Diameter: 44.5mm/1.75inSmall Head Diameter: 12mm/0.47inLarge Head Diameter: 34mm/1.34inSmall Tip Length: 20mm/0.79inBody Diameter: 70mm/2.75inNet Weight: 3kg/6.6lbsPackage Included1* MT5 Live Center

• Build to Last: Made of 40CR steel with quenching and precision machining processes, this product has excellent durability and good resistance to wear, and deformation, which is suitable for your heavy-duty work.
• High Accuracy: It adopts deep groove ball bearing, thrust ball bearing, and needle roller bearing to ensure more stable and smooth rotation, improving its accuracy(0.0006").
• High Efficiency: With about maximum 1000rpm speed, this product ensures high efficiency, thus better helping your machining work.
• Convenient Oiling: The design of the oiling hole facilitates the regular addition of lubricating oil(not included), reducing bearing load, effectively protecting bearings from wear, and extending service life.
• Thoughtful Design: With precision bearings and shockproof design, the product has better stability and safer operation. Moreover, the tight fit inside the front cover prevents cutting fluid and impurities from entering and extends the life of the bearing thimble.
