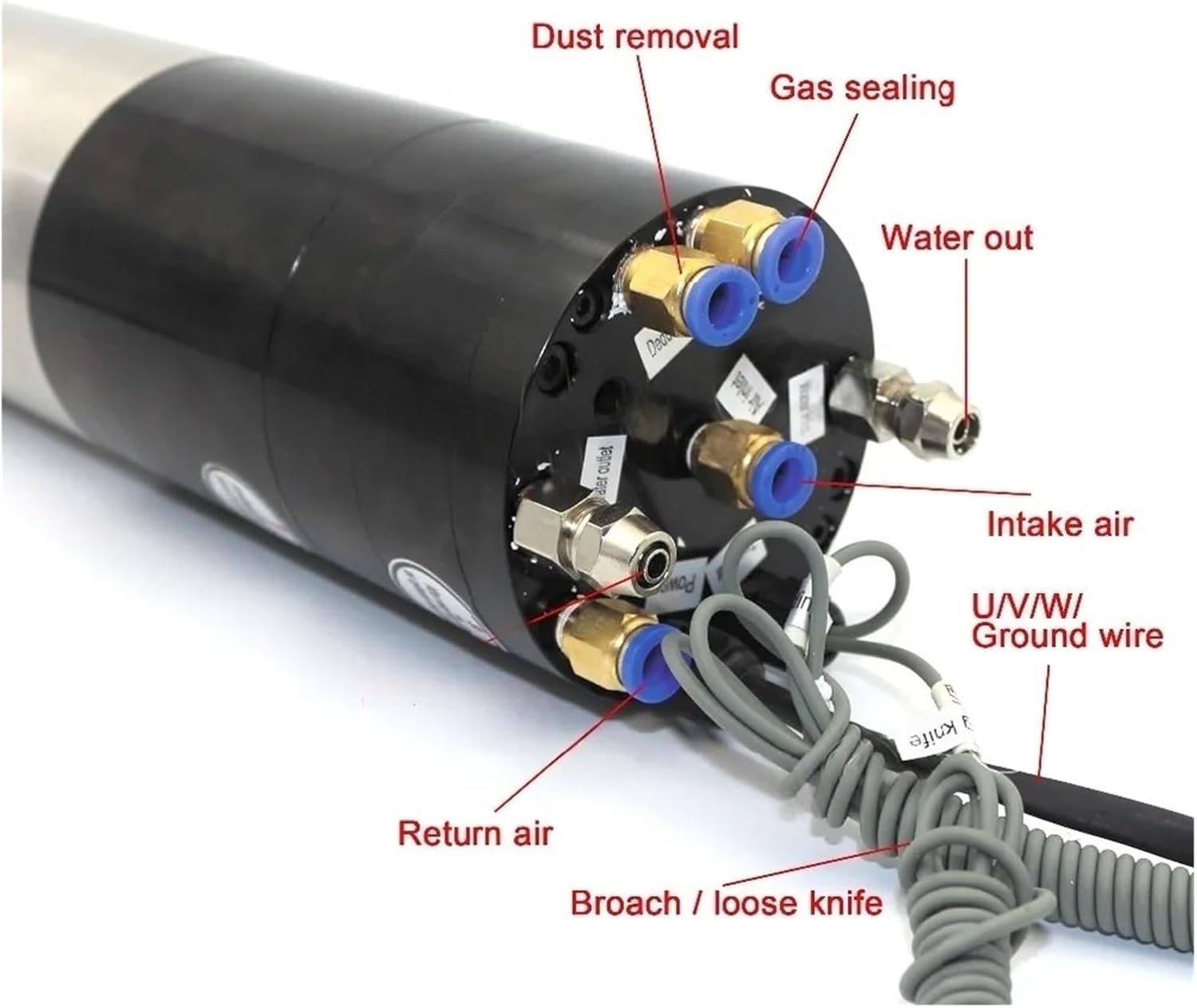

1.8KW 2.2KW ISO20 220V ATC Water Cooling Automatic Tool Change Spindle Motor(2.2KW 220V)

Package include:1x 1.8KW / 2.2KW ATCwater cooled spindle motor 220V 1. Product overview1) This spindle is built-in type spindle motor, built-in three asynchronous motors,by theinverter control.As the spindle has a compact structure,high power, big torque, small vibration,low noise characteristics,so it can achieve high speed,high powe cutting,high precision 2) The bearing of spindle use grease lubricated angular to contact bearings,can beachieved lifelong lubricating within the life cycle.3) The spindle use forced coolling mode to coolling motor,front and rear bearings.Coolantflow through the reasonable arrangement cycle watercourse of the spindle body,thus can takethe heat generated of the spindle rotation speed, to achieve thermal equilibrium,let spindletemperature within a certain constant value. External cooling device effect:maintaining aconstant temperature of the coolant.4) The spindle built-in PTC 140 temperature sensor(Technical parameters are visible inother sections of this specification),you can read it anytime if you need to protect the motortemperature.5) The tool clamping methods:this spindle built-in automatic tool change device,shank formis ISO20FitmentFor castings, aluminum, glass, etc., and other processingSpindle installation explanation1) Circulating Cooling DescriptionIt must ensure that the cooling water temperature of supply spindle is between 24-28deg. Usually setting the flow switch in return pipe ,to ensure the supply of spindle cooling water. Cooling water requirements: we recommend using distilled water, while recommend Feinuokesi (Fenix) protective agent F1 (using the scale of 1: 200),coolant temperature is 26deg±2deg,inlet, outlet pipe temperature can't exceed 5 deg.It is allowed As long as others can ensure fuller spindle cooling.2) Air sealing controlIn order to prevent water or impurities enters internal of the spindle,spindle will have gas sealing device,the gas seal machine must be started start with the machine at the same time. And the need to go through multi-stage filtration.3) Compressed gas quality requirementsThe quality requirement of gas which is used in gas seals:<;0.01mg/m3<;5µ m<;7.5deg(0.7MPa)4) Running-in program instructionsOnly all issued no failures operational signals,at the same time,all safety devices have been installed and working properly,then allow start spindle.==========Drive : MotorMaximum Torque : 0.84 NmOperating Speed : 24000rpmModel Number : RTM80-20-24Z/1.8 220VApplication : MillingCooling : Water cooledSize : 80x379mmPower : 1.8KwNose : ISO20Balance Level : G1.0Current : 5.4AVoltage : 220VBearing : 2x7006+1x7005

• Automatic tool change: Supports coordination with robotic arms or tool magazines for fast tool switching.
• High speed and accuary: Offers high rotational speeds (typically thousands to tens of thousands of RPM).
• Compact structure: Integrated motor and spindle design minimizes space usage.
• Effective cooling: Commonly uses water or air cooling to ensure stable high-speed use over time.
• Versatile interfaces: Compatible with various control device, making it easy to integrate into automated production lines.
